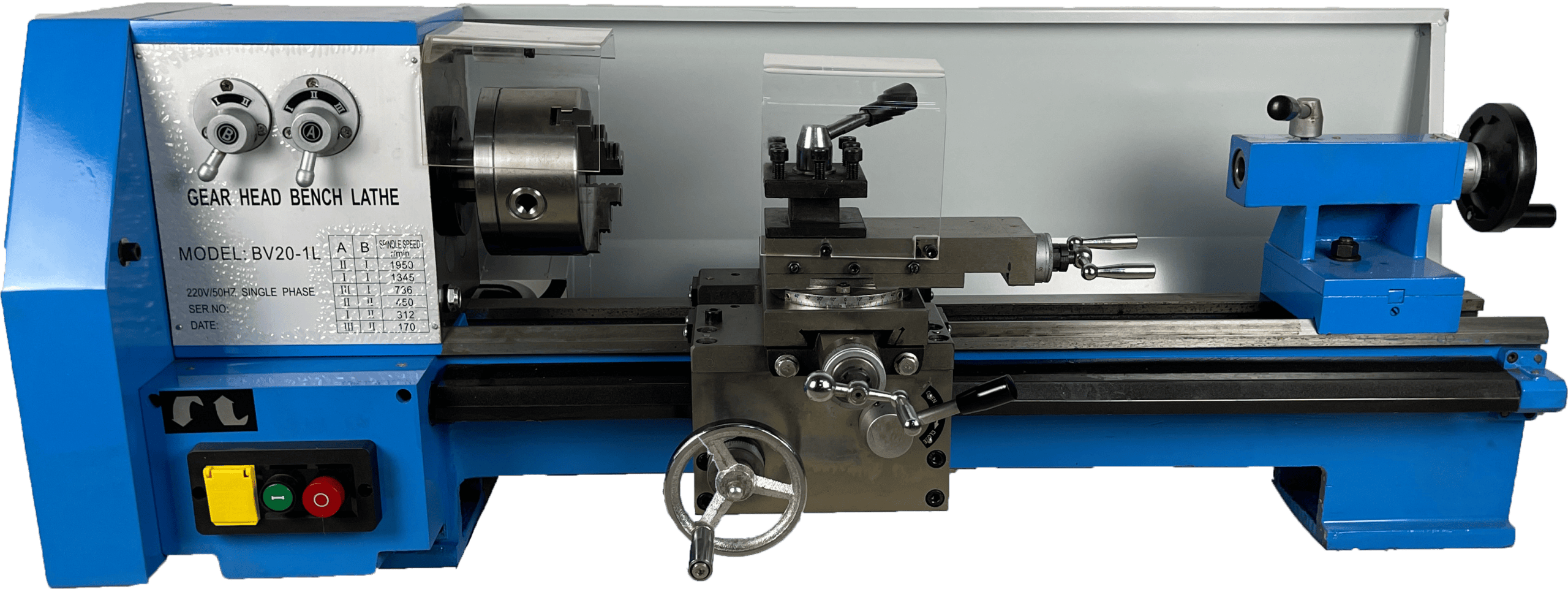

BENCH LATHE BV20-1L

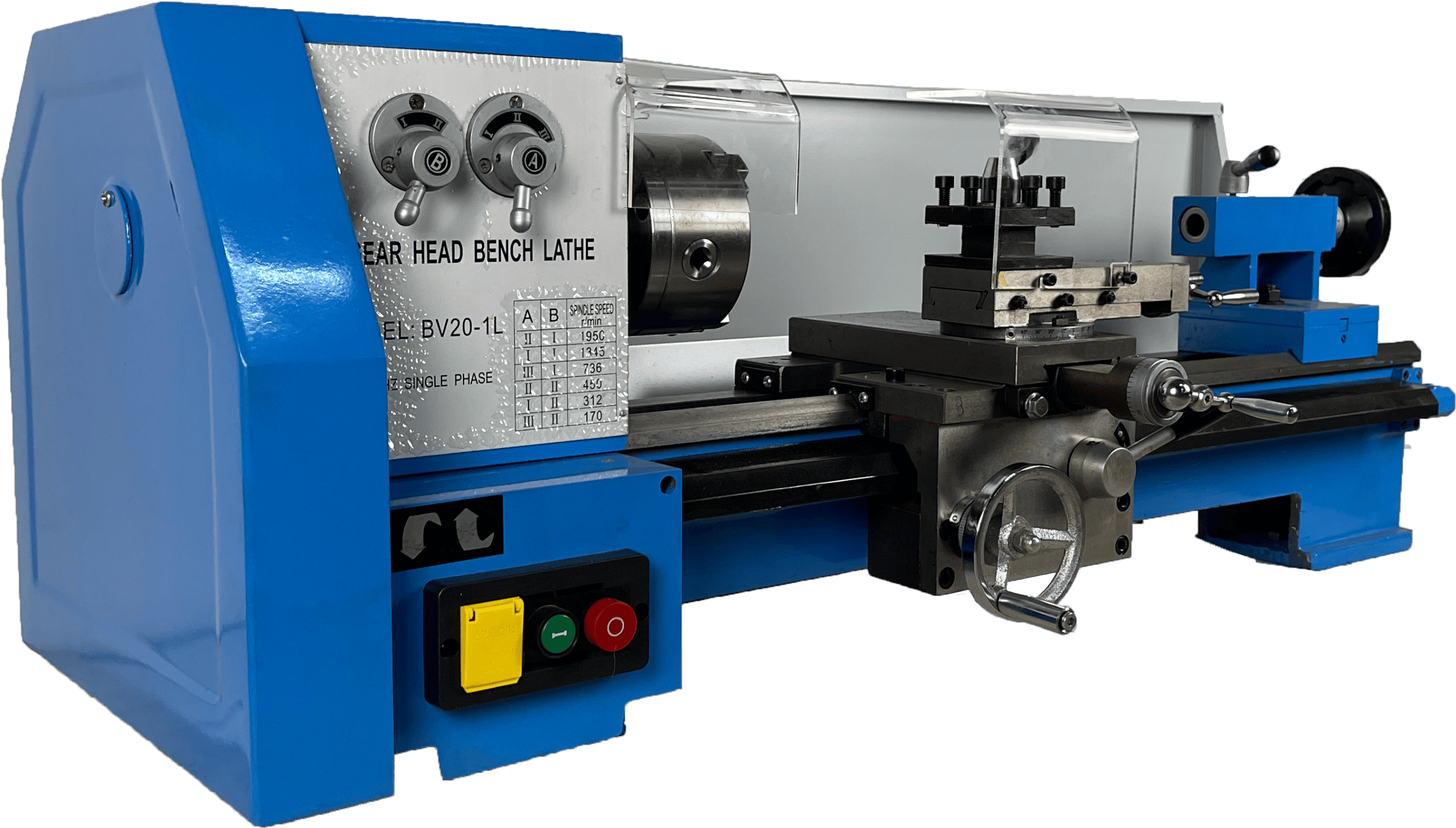

BENCH LATHE BV20-1L - Image 2

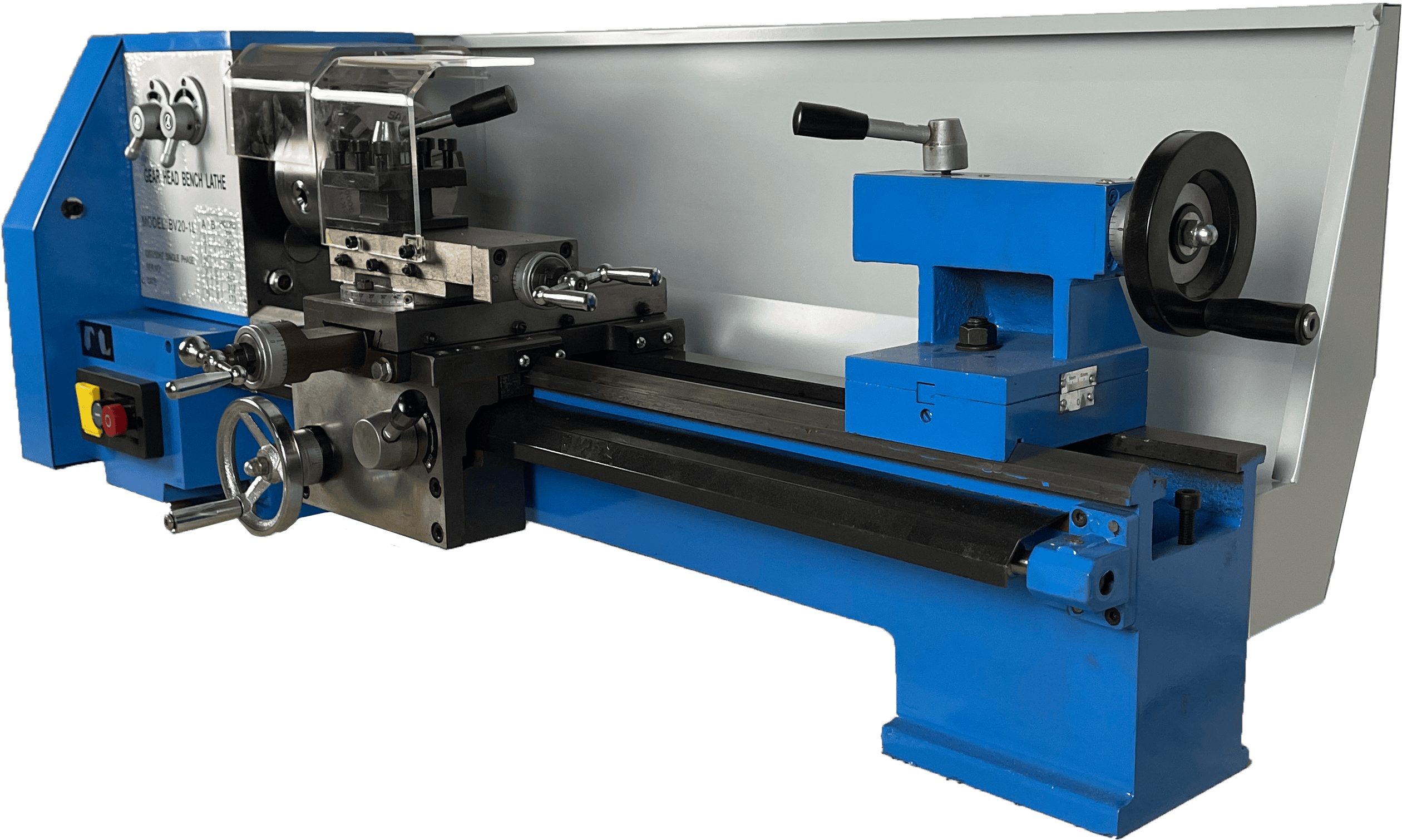

BENCH LATHE BV20-1L - Image 3
BENCH LATHE BV20-1L - Image 4

BENCH LATHE BV20-1L

Model/SKU: BV20-1L Category: Tags: , , ,

BENCH LATHE – Model BV20-1L

Additional information

Weight 130 kg
MOTOR

550W/220V/ 1400RPM
SPINDLE SPEEDS

6 Steps 170-1950 RPM
DISTANCE BETWEEN CENTERS (mm)

520
MAX. SWING DIAMETER OVER BED (mm)

200
MAX. TRAVEL OF CROSS SLIDE (mm)

70
HEIGHT OF CENTERS OVER BED (mm)

110
TAPER OF HOLE IN SPINDLE

M.C.3
METRIC THREAD (mm)

11.0.4-3
INCH THREAD (inch)

11.8/1"-48/1"
TAPER BORE OF THE TAILSTOCK

M.C.2
MAX. TURNING ANGLE OF REST SLIDE (°)

45
PACKING DIMENSION (cm)

122 X 56 X 45
GROSS WEIGHT (kg)

135
NET WEIGHT (kg)

130

BENCH LATHE – Model BV20-1L

MOTOR 550W/220V/ 1400RPM
SPINDLE SPEEDS 6 Steps 170-1950 RPM
DISTANCE BETWEEN CENTERS (mm) 520
MAX. SWING DIAMETER OVER BED (mm) 200
MAX. TRAVEL OF CROSS SLIDE (mm) 70
HEIGHT OF CENTERS OVER BED (mm) 110
TAPER OF HOLE IN SPINDLE M.C.3
METRIC THREAD (mm) 11.0.4-3
INCH THREAD (inch) 11.8/1″-48/1″
TAPER BORE OF THE TAILSTOCK M.C.2
MAX. TURNING ANGLE OF REST SLIDE (°) 45
PACKING DIMENSION (cm) 122 X 56 X 45
GROSS WEIGHT (kg) 135
NET WEIGHT (kg) 130

Official Product Datasheet (PDF)

Download PDF
